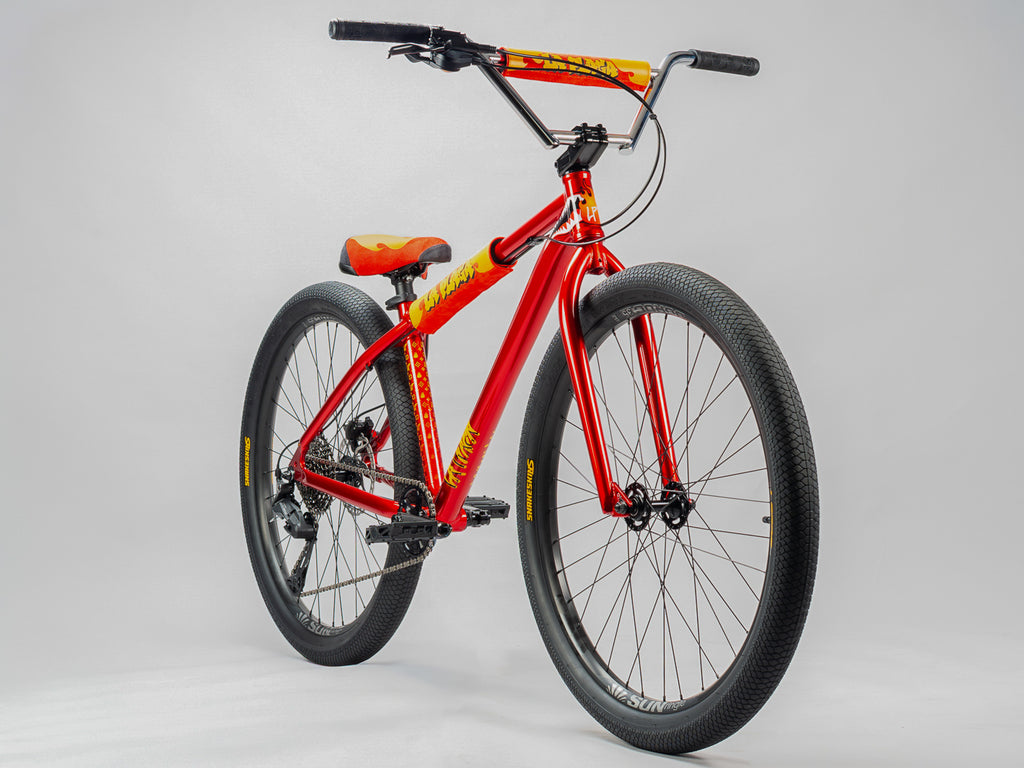

Introducing Bomma La Plaga, a competition spec 27.5" bike that needs no modification. .
| Geometry |
|
|---|---|
| (A) Top tube length | 589.5mm |
| (B) Head tube length | 105mm |
| (C) Standover | 744mm |
| (D) Reach | 432mm |
| (E) Stack height | 554mm |
| (F) Bottom Bracket | 11.6 |
| Geometry diagram |
Geometry
|
| Specs |
|
| Frame | La plaga Bomma 27.5 |
| Forks | Bomma Flanged 27.5 |
| Handlebars | Bomma 2 piece W762mm x H168mm |
| Grips | Lucky 6 Grips |
| Headset | 1 1/8” Integrated - Sealed bearings |
| Stem | Mafiabikes forged Topload - 50mm Reach |
| Pedals | 9/16” Mafiabikes plastic PP |
| Saddle | Mafiabikes Wheelie seat - Railed |
| Seatpost | Ø31.6mm micro adjust alloy |
| Seat Clamp | Ø35mm External QR |
| Cranks | 170mm 4130 chromoly 19mm 8 spline heat treated |
| Chainring/sprocket front | 32t La Paga 7075 T6 CNC |
| Sprocket/cassette rear | 11-39t 10 spd Shimano Cues |
| Tyre Front | Lagos Snakeskin "S" Super Soft Compound 27.5" x 2.5" |
| Tyre Rear | Lagos Snakeskin "S" Super Soft Compound 27.5" x 2.5" |
| Front hub | Alloy shell, 3/8" axle, sealed bearings |
| Rear hub | Alloy Shell, 10x135mm, Quick Release, Disc, Fully Sealed, High engagment hub |
| Rim front | 27.5" 35mm Duroc35 double wall alloy 36h |
| Rim rear | 27.5" 35mm Duroc35 double wall alloy 36h |
| Brake Front | Side pull cable brake (supplied in roadkit) |
| Brake Rear | Shimano MT200 - hydraulic disc brake 160mm rotor |
| Tech |
|
| BB type | 73mm ISO External (24mm) |
| Headset type | 1 1/8” integrated |
| Rear axle/hub spacing | M10 x 135mm QR axle |
| Max tyre width rear | 66mm / 2.6" |
| Seatpost/seatclamp | Ø31.6mm post, 35mm seatclamp |
| Front axle/hub spacing | 3/8" x 100mm axle |
| Max tyre width front | 66mm / 2.6" |
| Frame construction and details | 6061 T6 Aluminum, IS rear brake tab, heavy duty hydroformed downtube and chainstays, peg mount integrated dropouts |
| Road kit | Included |
