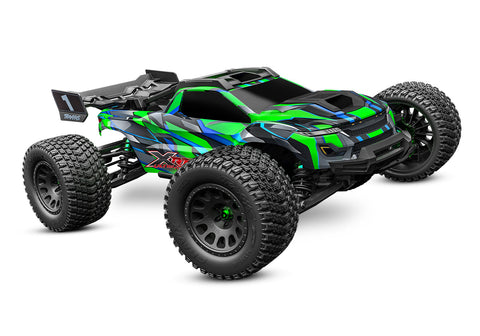

TRAXXAS XRT ULTIMATE 8S RC RACE TRUCK

High-Performance Aluminum Upgrades
- 6061-T6 aluminum C-hubs
- 6061-T6 aluminum steering blocks
- 6061-T6 aluminum rear hub carriers
- 6061-T6 aluminum differential housings
- 6061-T6 aluminum motor mounts
VXL-8s^™ Waterproof Electronic Speed Control
- New aggressive tune for more power at any RPM
- Integrated cooling fan
- 3-LED status indicators
- Machined heat sink
- Powered accessory ports
- 10-gauge silicone wire
- Integrated protection circuits
Velineon^® 1200XL Brushless Motor
- 4-pole 1275 kV
- 5 mm output shaft
- Oversize aluminum heatsink for improved cooling
- Dual cooling fans
Up to 60+ mph with Two 4s LiPo Batteries (sold separately)
Traxxas Stability Management^®
- Improves straight line acceleration and braking on low-traction surfaces
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
TQi™ 2.4 GHz 2-Channel Radio System with Factory-Installed Wireless Module
- Factory-installed telemetry sensors
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Patented waterproof receiver box with easy-access plug
X-Maxx^® Spec 8s Drivetrain
- Machined, hardened steel pinion and spur gear
- Full-time shaft-driven 4-wheel drive
- Heavy-duty steel CV driveshafts & axles
- Splined aluminum center driveshaft
- Machined aluminum stub axles

Transmission
- Mod-1 pinion and spur gears
- Torque-Biasing Center Drive
Maxx^® Spec Differentials
- Heavy-duty sealed 4-gear design
- Large scale steel ring and pinion gears
- Splined outdrives attached with external thru-bolt method
- New bulkhead and covers increase bearing support
Rock-Solid Motor Mounting System
- Rigid aluminum motor mounts
- Precise preset gear mesh adjustments
- 4 keyed pins lock the motor in place
- Motor retention separate from gear mesh
GTX™ Aluminum Race Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- Ultra-smooth TiN-coated 5.2 mm damper shafts
- Lower seal cartridge includes integrated wiper seal combination
- Aluminum upper spring retainers
- Aluminum shock caps with pivot balls
- Lower spring perches bolted on
WideMaxx^®Suspension
- Extra-wide suspension arms
  - Made from our strongest cold-weather material
- Double-shear connections
- High-strength steel suspension pins with retainers
- 4 mm machined pivot balls
- TUBES 7075-T6 Aluminum front toe links
- Oversized wheel bearings
Steering
- 6061-T6 aluminum steering bellcranks
- Powerful 450 oz-in metal-gear steering servo
- Double-shear aluminum servo horn
- Heavy-duty servo saver spring
- Dirt evacuation channels

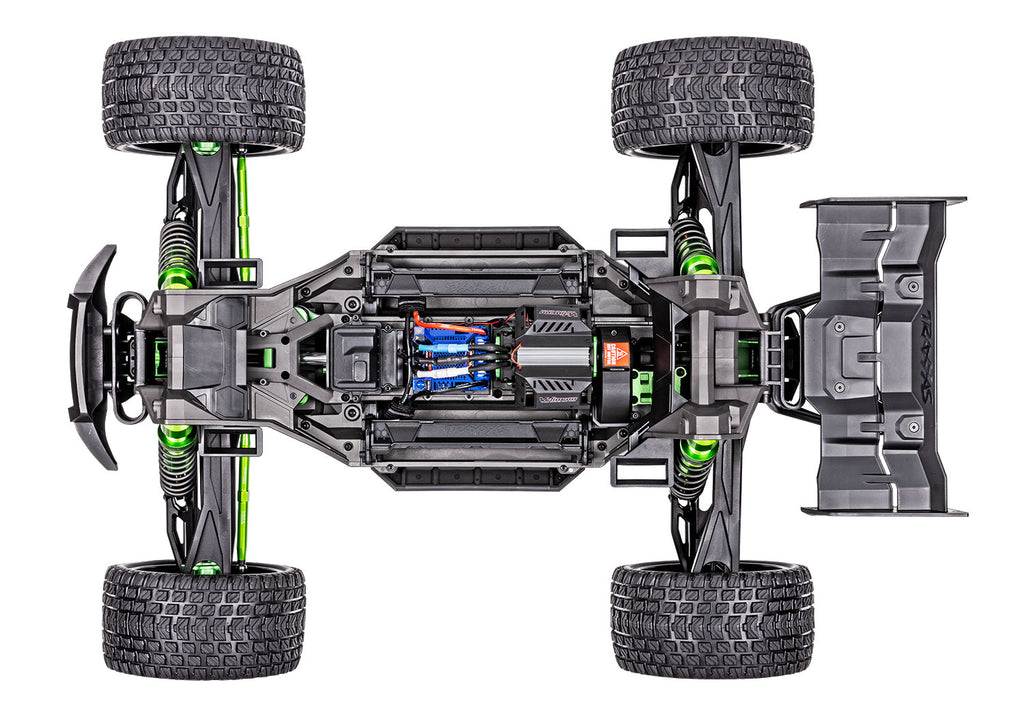

Ultra-Low-CG Chassis Design
- Modular chassis with interlocking bulkheads
  - Low center of gravity for improved handling
  - Flat bottom design
  - Heavy-duty interlocking skid plates
  - High-strength buttressing on shock towers
- Dual snap-lock battery compartments
  - Protects batteries from side impacts
  - Allows secondary battery-clip security
- Interlocking components for tight tolerances
ProGraphix^® Clipless Body
- Snaps in place in just seconds
- Secure body latches are easy to use
- Clipless body mounting system
- Rigid internal frame
- Dual high-capacity cooling ducts
- Molded body reinforcements for tear-through protection
- Protective top skids
- Rugged high-downforce rear wing
Heavy-duty Bumpers
- Reinforced front bumper and rear wing support
  - Absorb impact forces while retaining shape
- Heavy-duty front bumper and support
- Reinforced rear wing support
- Nerf bars for side impact resistance
- Heavy-duty wheelie bar with carry handle
Wheels and Tires
- 7.4″ Gravix^™belted race tires
  - Belted carcass virtually eliminates ballooning at high speed
  - Low sidewall for sharp turn-in response
  - Runs quieter than traditional off-road tires
- 3.8″ matte black XRT race wheels
- High-strength glue and bead design
- Huge 24 mm splined wheel hubs
Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating

Model Name:	XRT Ultimate
Model Type:	Monster Truck
Model Speed:	60+ mph with dual 4s LiPo batteries and optional gearing
Model Skill Level:	5
Scale:	X-Truck™
Weight:	21.55 pounds (9.79 kg)
Length:	31.41 inches (798 mm)
Width:	23.43 inches (595 mm)
Front Track:	23.43 inches (595 mm)
Rear Track:	23.43 inches (595 mm)

Height:	10.15 inches (258 mm)
Wheelbase:	18.9 inches (480 mm)
Center Ground Clearance:	1.93 inches (49 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Pitch:	1.0 metric pitch
Servo(s):	2085X metal gear ultra-high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with wireless module
Battery Compartment Specs:	185 mm X 51 mm X 44 mm

ESC Name:	Velineon® VXL-8s
ESC Type:	Brushless
ESC Case Size:	2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
ESC Weight:	7.60 ounces (215.5 g)
Motor Connectors:	6.5 mm bullet connectors
Battery Connectors:	Traxxas High-Current Connectors
ESC Power Wire:	10 gauge Maxx® Cable
