• Sale
  • Regular price $1,499.95

  • High Performance Aluminum Upgrades
    • 6061-T6 aluminum C-hubs
    • 6061-T6 aluminum steering blocks
    • 6061-T6 aluminum rear hub carriers
    • 6061-T6 aluminum differential housings
    • 6061-T6 aluminum motor mounts
  • VXL-8s™ Waterproof Electronic Speed Control
    • 8s LiPo compatible
    • Built-in cooling fan
    • Machined heat sinks
    • 10-gauge silicone wire
    • Integrated protection circuits
    • LED status lights
  • Velineon® 1200XL Brushless Motor
    • 4-pole 1275 kV
    • 5 mm output shaft
    • Aluminum slip-on heat sink
    • Dual motor cooling fans
  • 50+ MPH with Two 4s LiPo Batteries and Included Optional Spur Gear
  • Traxxas Stability Management® (TSM)
    • Helps prevents spinouts and loss of control
    • Adjusts from off to 100% assistance from the transmitter
  • TQi™ 2.4 GHz 2-Channel Radio System with Wireless Module
    • Factory-installed telemetry sensors
    • 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
  • Clipless Body Mount System
    • Quick one-handed installation and removal
    • Uses pivoting rear latch mechanism
    • Eliminates body posts and clips
    • Reinforced for extra protection
  • Drivetrain
    • Full-time shaft-driven 4-wheel drive
    • Machined, hardened steel pinion and spur gear
    • All-metal gears and CV driveshafts
    • Torque-Biasing Center Drive™ absorbs shocks and distributes power
    • 24 mm splined wheel hexes
    • Wheel hexes retained with a clip
    • 17 mm hex on outside of wheel
    • Sealed, silicone fluid-filled diffs with large module ring and pinion gears
    • Splined outdrives attached with external thru-bolt method
    • Fully machined aluminum stub axles
    • Splined aluminum center driveshaft
  • Fixed Motor Mounting System
    • Rigid aluminum motor mounts
    • Preset gear mesh adjustments
    • No manual adjustments required
    • Motor retention separate from gear mesh
  • Heavy-Duty Modular Composite Chassis
    • Interlocking front and rear bulkheads
    • Motor mounts to rear bulkhead to eliminate gear crunching flex
    • Easy to service and access components
    • Driveline is sealed in the chassis to keep out dirt and grit
  • Snap-Lock Battery Retention System
    • No body clips or hook and loop straps
    • Battery hold-downs pivot for easy access
    • Adjustable for battery size
    • More secure than conventional retention systems
    • Integrated into chassis top brace for improved battery tray and chassis stiffness
  • Bumpers
    • Front energy absorbing rubber impact bumper
    • Lower front and rear skids for impact and abrasion resistance
    • Integrated nerf bars for side impact resistance
  • Steering
    • 6061-T6 aluminum steering bellcranks
    • 2085X high-output metal gear steering servo
    • Double-shear aluminum servo horn
    • Heavy-duty servo saver spring
  • Suspension
    • TUBES 7075-T6 Aluminum front toe links
    • All critical suspension points have double shear strength
    • High strength steel suspension pins used throughout
    • Suspension pins retainers won’t come loose or “back-out”
    • C-hub and steering block geometry maximizes steering angle
    • Adjustable roll center
    • Steel upper and lower tie bars
    • Full contact sealed bearings used in exposed locations
  • Aluminum GTX™ Shocks
    • Machined aluminum threaded body
    • Extra-large bore and capacity
    • Ultra-smooth TiN-coated 5.2 mm damper shafts
    • Lower seal cartridge includes integrated wiper seal combination
    • Adjustable aluminum upper spring retainer
    • Aluminum shock caps with pivot balls
    • Fixed shock locations
    • Lower spring perches bolted on
  • Wheels/Tires
    • Massive 8.4″ Sledgehammer® belted tires
      • Virtually eliminates ballooning at high speeds
      • Open tread block design
      • 2-piece foam insert
      • High-strength glue and bead design
    • Large, dual-diameter wheels

Model Specs

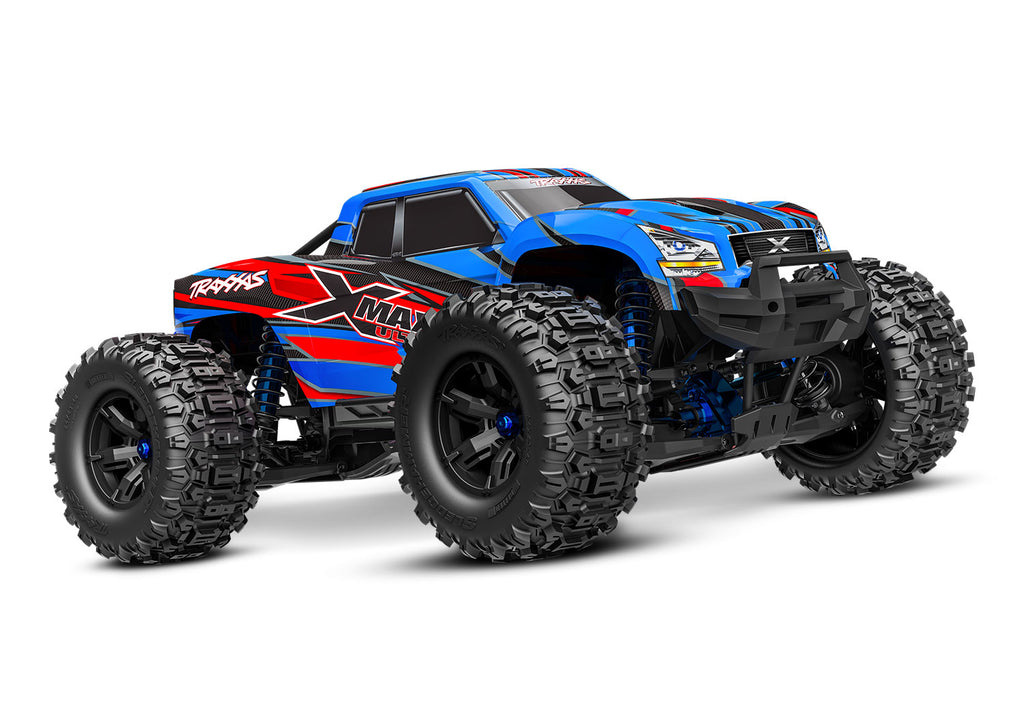

Model Name: X-Maxx Ultimate
Model Type: Monster Truck
Model Speed: 50+ mph with two 4s LiPo batteries and optional pinion gear
Model Skill Level: 6
Scale: X-Truck
Weight: 22.20 pounds (9.5 kg)
Length: 30.67 inches (779 mm)
Width: 21.3 inches (540 mm)
Front Track: 21.3 inches (540 mm)
Rear Track: 21.3 inches (540 mm)

Motor Specs

Motor Name: Velineon® 1200XL
Motor Type: 1275 kV sensorless brushless
Motor Weight: 23.44 ounces (665 g)
Motor Length: 4.32 inches (110 mm)
Motor Diameter: 1.88 inches (48 mm)
Motor Shaft Size: 5 mm
Motor Connector Type: 6.5 mm bullet connectors

ESC Specs

ESC Name: Velineon® VXL-8s™
ESC Type: Brushless
ESC Case Size: 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
ESC Weight: 7.60 ounces (215.5 g)
Motor Connectors: 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
ESC Power Wire: 10 gauge Maxx® Cable
